Year 1 Sem 2/LC Introduction to Particle Physics and Cosmology/Lecture 07
← Previous lecture · Module · Next lecture →
Primary Textbook:
“An Introduction to Modern Cosmology”, Andrew Liddle. Each lecture will have a chapter or two as recommended reading from this book and is available as an ePDF from the library.
The origin of Cosmology
Comes from the Ancient Greek word $\kappa o \sigma \mu o \sigma$, “kosmos” meaning order. Cosmology is a branch of astronomy concerned with studying the origin and evolution of the universe. We won’t really consider anything on a smaller scale than clusters of galaxies.
The earliest form of this is celestial mechanics which goes back to Ancient Greek philosophers sch as Aristotle and Ptolemy.

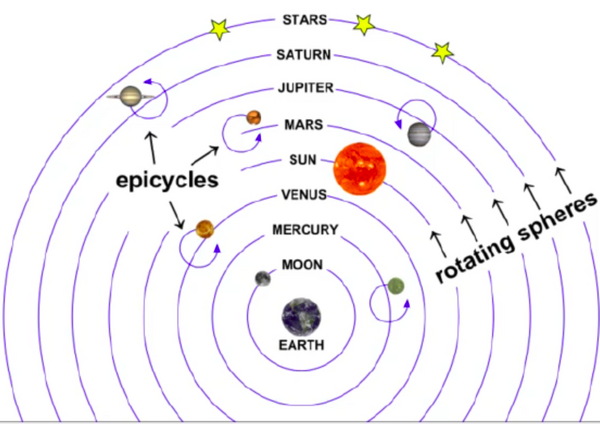

Geocentric Ptolemaic System
This was the prevailing theory until the 16th century where the earth was at the centre of the universe and other stars/planet etc revolved around the earth in “epicycles”. Here, the planets sat on rotating spheres, which orbited the earth.
The epicycles explain retrograde motion. Observational power was too limited to get more accurate measurements, and they noticed that some objects appeared to go backwards as they were moving forwards overall in the orbit. We can solve this by placing another smaller circular orbit superimposed on the larger orbit.
We now know that this is not accurate, but it explained the motion at the time.
Heliocentric System
Copernicus in 1543 radically changed the understanding of orbits. He suggested that the sun, not the earth, was near the centre of the universe. The planets, including the earth revolved in circles around the sun, with other stars orbiting much further away.
In order to match the observed motion, we still need epicycles in this initial version of the theory.
This was the foundation of modern astronomy, and lead to:
- Kepler discovering elliptical orbits. This got rid of the need for epicentres and described the motion of planets with the data collected at the time.
- Galilei discovering the moons of Jupiter and phases of Venus. Before Galilei, these telescopes were not sufficiently powerful to observe these phases. The existence of these moons provided additional evidence for the heliocentric system as we now had a celestial body which did not orbit the Earth. This suggested that the Earth wasn’t special, which was one of the beliefs that drove the geocentric model.
- Newton’s theory of universal gravity in 1678.
This theory, and the implications it had on humanity’s role in the universe was deeply unpopular with religious leaders and this caused opposition to its widespread acceptance.
This was a better way to think about the solar system (which was about the limit of what was practically observable). Copernicus therefore needed to provide evidence to justify this. These later from Kepler, Galilei and Newton acted as this evidence.
From Herschel to Hubble
In order to go from scales on a solar system level to a cosmological level, we need more powerful measurement equipment to be able to gather as much data as possible on much larger scales. William and Caroline Herschel pioneered this by creating the most powerful telescopes to date in 1877.
They probed deeper and deeper past the solar system, into the “deep sky”. They investigated the contents of the Milky Way to build a catalogue of objects and try to find the edge of the galaxy.
This was in an attempt to work out whether or not there was some kind of edge to the universe. They discovered diffuse objects (“nebulae”) beyond the milky way, and began to be able to resolve individual stars with improved technology.
This lead to the question of whether these nebulae (named “island galaxies” at the time) belong as components of the milky way or existed in their own right as galaxies.
Shapley-Curtis Debate
In the 1920s, the “Great Debate of Astronomy” investigated whether these spiral shape nebulae were small object on the outskirts of the Milky Way (advocated for by Harlow Shapley) or were independent small galaxies outside the gravitational attraction of the MIlky Way (advocated for by Heber Curtis).
In 1924, Edwin Hubble established that these bright nebulae were not part of the Milky Way and were instead of extragalactic origin. This told us that the observable universe extended beyond the Milky Way.
He discovered Cepheid Variable Stars, which are stars of periodic varying brightness. The period of pulsation is linked to intrinsic luminosity, and they act as distance indicators based on the perceived brightness and period on Earth.
These observations estimated the distance of these CVSes away from the Earth, and proved that they were too distant to sit within the Milky Way. This profoundly changed our understanding of the scale of brightness.
These CVSes are called “standard candles” which are astronomical objects with known intrinsic luminosity, $M$. We observe some different apparent brightness $m$, and can measure the pulsation period to determine the actual intrinsic luminosity.
Using $M$ (determined from period) and $m$ (measured) directly, we can use this formula:
This made it apparent that these distances were much larger than our understanding of the size of the Milky Way, by in excess of 2 orders of magnitude.
We can also know the intrinsic luminosity of a Type 1a supernovae, when a star explodes and collapses into a white dwarf.

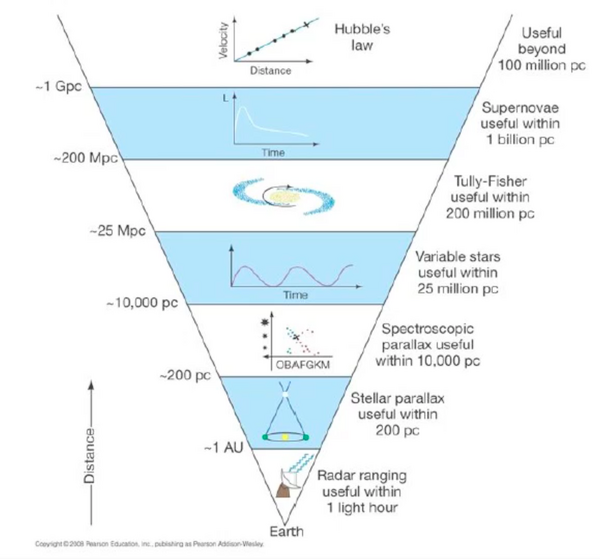

Cosmic Ladder
We can form the “Cosmic Distance Ladder”. Since traditional distance measurements become infeasible as scales get larger, we need to use different ranges for different distances. For example:
- Cepheid Variable Stars are not that bright, so stop being useful at longer ranges.
- Supernovae are brighter, so stay useful for longer.
Expansion of the Universe
In 1929, Hubble analysed the emission spectra of galaxies. As a source moves, wavelengths (hence the positions of spectral lines) are impacted by redshift:
From this, noting the changes of the spectral lines vs known non-redshifted calibration points on earth allowed for the velocity of each galaxy to be determined.
Plotting $v$ against $r$ yields a straight line, suggesting $v \propto r$. Hence galaxies further away are moving faster. The sign of the redshift (i.e. is it indeed redshift and not blueshift) confirms that they are moving away from us.
This is very strong evidence that the universe is not static and is actually expanding. This gives us a dramatically new understanding of the universe, where it grows in size as time goes on.
Key Observations
We have a number of key objectives, and want to build a theory that fits these and makes predictions. Most of these observations are made using electromagnetic radiation, although additional information is provided by particle physics (and more recently gravitational wave astronomy).
Some of these key observations are:
- The universe is expanding (Hubble).
- There is an abundance of light elements (nucleosynthesis).
- Large-scale structure (LSS).
- Cosmic microwave background (CMB).
- Galaxy rotation curves (implying the existence of dark matter).
- Acceleration of the rate of expansion of the universe (dark energy).
Nucleosynthesis
Stars are very good and producing heavy elements via nuclear fusion. Here, stars start with lighter elements (H, He) and fuse upwards through increasing mass numbers up to Iron. Heavier elements require a stellar explosion to form.
It turns out that young stars have an abundance of light elements. These start from gas clouds that have collapsed gravitationally. In this very early stage, they started out with some contamination of heavier lighter elements (Helium isotopes and other Hydrogen isotopes) and couldn’t just start with Hydrogen. They need some of these other elements to kickstart the process.
There has to be some process that took place before stars were formed that provided these elements to kickstart star formation. Stars could not have formed without this.
Theorists (George Gamov 1948) hypothesised reversing the expanding universe, i.e. stepping back in time to a much smaller, denser, hotter early universe. This would have formed a plasma-like state which could have provided these elements.
Nuclear fusion requires a very large energy, i.e. nuclear binding energy for these interactions is $\sim 1$MeV. This plasma state lasted about 3 minutes, and allows for the formation up to Hydrogen-4. Heavier elements are still formed in stars.
Large Scale Structure
The fundamental building block of the the universe is galaxies. This cluster themselves together into filaments. While on a local scale, we see very large gaps between these, on a large enough scale (i.e. zoomed out enough) we see that the universe is very smooth on average. We say that, on cosmological scales, the distribution of matter is homogeneous and isotopic (has identical physical properties in all directions with uniform structure).
Cosmic Microwave Background
There is a nearly isotropic low frequency radiation background that penetrates the entire universe. It has an almost perfect black body spectrum with $T \sim 2.73$K. This is in the microwave region.
Discovery of Dark Matter
Fritz Zwicky and Vera Rubin discovered strange velocities in galaxy clusters and in the rotational curves of galaxies. This suggests that there is some extra mass that only interacts via gravity.
This is also potentially (dark energy) a driving force for the increasing rate of the expansion of the universe. It implies that we may need an extra particle added to the standard model to explain what actually makes this up.
