Lecture 14: Mechanics X: Conservation of Energy
Thu 13 Nov 2025 15:00

← Previous lecture · Module · Next lecture →

Work Done Example I

Do not read this lecture without also taking Section 1 of Lec 15 into account.

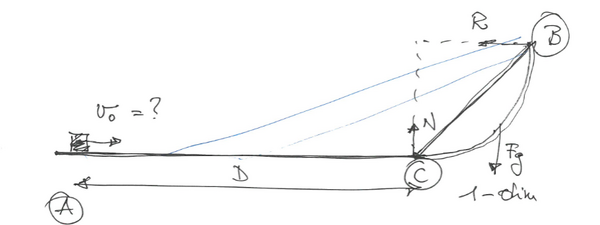

We have a straight portion of track with length $D$ which becomes a quarter circle ramp with radius $R$. We kick a box of mass $m$, providing initial horizontal velocity $v_0$.

Assuming No Resistive Friction/Air Resistance

The only forces on the block are gravity and the normal contact force. What $v_0$ must we impart on the block for it to (perfectly) reach the top of the ramp at point (B)?.

Since there’s no resistive forces along the horizontal section, the length of it is irrelevant. We can solve for the curved section using solely energy conservation:

$$\frac{1}{2}m v_0^2 = mgR + \xi$$

We take the height of points (A) and (C) as the $U=0$ baseline, so $\xi = 0$.

$$\frac{1}{2} v_0^2 = gR$$

$$v_0 = \sqrt{2gR}$$

This was much easier compared to solving it using forces. Where possible, it’s often extremely powerful to use conservation of energy in cases where we only care about the final and initial state of the object.

Assuming Friction

Assume there is some friction with $\mu_\text{kinetic} = \mu$, we therefore have to account for work done by this:

$$E_A + W_{A \to B} = E_B$$

Where $E$ is a general energy term encompassing both kinetic and potential.

$$W_{A \to B} = \int_{A}^{B} \vec{F}_\text{fric} \, d \vec{s}$$

Breaking up the integral into the horizontal section and the ramp:

$$W_{A \to B} = \int_{A}^{C} \vec{F}_f \cdot d\vec{s} + \int_{C}^{B} \vec{F}_f \cdot d\vec{s}$$

$$= - \mu N \int_{(A)}^{(C)} \hat{e}_s \cdot d\vec{s} + \int_{C}^{B} \vec{F}_f \cdot d\vec{s}$$

$$= - \mu N D + \int_{C}^{B} \vec{F}_f \cdot d\vec{s}$$

Where (as no other forces are acting horizontally), $N = mg$:

$$= -\mu mg D + \int_{C}^{B} \vec{F}_f \cdot d\vec{s}$$

The weight force acting down has two components, we care about the projection of the weight force along the direction of motion, $mg \cos \theta$. Where $\theta$ is the angle that joins the vertical and a radius to the box’s position, going from $0$ at (C) to $90^\circ = \pi / 2$ at (B).

$$= - \mu mg D + (- \mu mg) \int_{(C)}^{(B)} \cos \theta d\vec{s}$$

$$= - \mu mg D - \mu mg \int_{(C)}^{(B)} \cos \theta R d \theta$$

$$= - \mu mg D - \mu mg R \int_{0}^{\pi / 2} \cos \theta d \theta$$

$$= - \mu mg D - \mu mg R \left[\sin \theta\right]_0^{\pi / 2}$$

$$= - \mu mg D - \mu mg R$$

$$= - \mu mg \left(D + R\right)$$

Note these important things:

The work done is negative, as it is work done against the motion by friction.
We assume that we move infinitesimally slowly, therefore we disregard centripetal force. Yes this is slightly (very) contradictory to the premise of the problem, as high velocity is required to climb but it’s an approximation. This is looked at next lecture.
This is exactly the same as if the object simply carried along a straight stretch of road of length $R$ after the horizontal stretch - the fact the ramp is a curve changes nothing.

Putting it all together, we therefore finally have:

$$E_A + W_{A \to B} = E_B$$

$$E_A - \mu mg \left(D + R\right) = E_B$$

$$\frac{1}{2}mv_0^2 - \mu mg \left(D + R\right) = mgR$$

As the object starts at our $U = 0$ baseline so has no potential energy, and we provide perfectly enough initial velocity such that the object reaches (B) with zero kinetic energy.

Hooke’s Law

Consider a 1D x-axis. We are given that there is a force characterised by the potential:

$$U(x) = \frac{1}{2}k x^2 \qquad \text{where $k$ is a constant.}$$

As this is a one dimensional problem:

$$\vec{F} = - \frac{dU}{dx} \hat{e}_x$$

$$= - \frac{d}{dx} \frac{1}{2}k x^2 \hat{e}_x$$

$$= - \frac{1}{2} k (2x) \hat{e}_x$$

$$= - kx \hat{e}_x$$

So:

$$\vec{F} = -k \vec{x}$$

We have encountered this before at A-Level, it’s the restoring force of a spring.

The spring is characterised by some spring constant $k$, and we assume that the spring is ideal and massless. The position $x = 0$ is the relaxed (unstretched and uncompressed) portion of the spring. The restoring force acts back towards the $x = 0$ equilibrium point.

$\vec{F} = -k \vec{x}$ is known as “Hooke’s Law”. We will see applications of it later.

Linear Momentum

We now pivot from Conservation of Energy to Conservation of Linear Momentum.

If we have particle with mass $m$ and velocity $v$, we define linear momentum as:

$$\vec{\phi} = m \vec{v}$$

We can therefore use $\vec{F} = m \vec{a}$ to rewrite force as:

$$\vec{F} = \frac{d \vec{\phi}}{dt}$$

We also define “impulse” as the change of linear momentum over a time:

$$\vec{\jmath} = \int_{t_1}^{t_2} \vec{F} \, dt$$

$$= \int_{t_1}^{t_2} \frac{d \vec{\phi}}{dt} \, dt$$

$$= \phi \bigr\rvert_{t_2} - \phi \bigr\rvert_{t_1}$$
